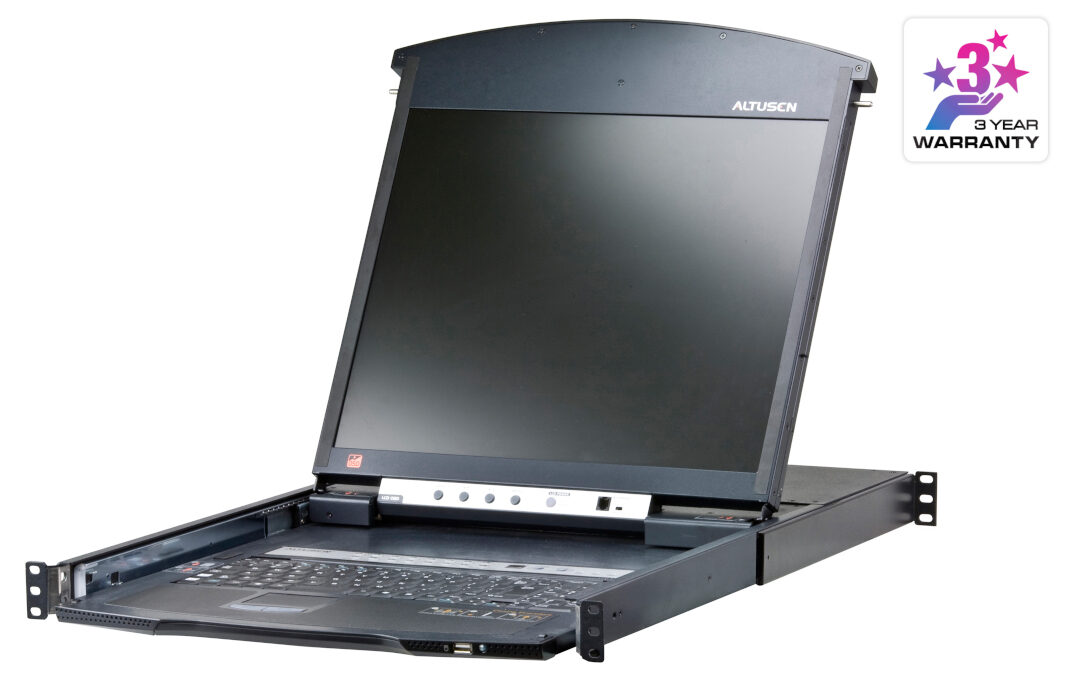

The KL1516Ai Dual Rail LCD KVM Switch is a control unit that allows secure access up to 16 computers from a single KVM (keyboard, video, and mouse) console. It consists of an integrated LCD monitor, keyboard, and touchpad in a 1U rack-mountable retractable sliding housing. The LCD and keyboard/touchpad modules slide independently of each other. To maximize space in your data center, the keyboard/touchpad module slides back to “ hide away ” when not in use, while the thin profile LCD monitor rotates back – flush against the rack – allowing convenient monitoring of computer activity.

The KL1516Ai features IP-based connectivity that allows local and remote operators to monitor and access the computers on your installation. Because it uses TCP/IP for its communications protocol, the KL1516Ai can be accessed from any computer on the LAN, WAN, or Internet – whether that computer is located down the hall, down the street, or halfway around the world.

Feature :

• Hardware
• Integrated KVM console with 19″ LCD monitor in a Dual Rail housing
• A single console controls up to 16 computers
• Daisy chain up to 15 additional KVM switches to control up to 256 computers*
• One bus for remote KVM over IP access
• Space-saving RJ-45 connectors and Cat 5e/6 cabling
• KVM adapter cables designed with automatic conversion to allow flexible interface combinations (PS/2, USB, Sun and serial) to control all computer types
• Extra console por – manage computers in the LCD KVM switch from an external console (monitor, USB or PS/2 keyboard, and USB or PS/2 mouse)
• Multiplatform support: PC, Mac, Sun and Serial
• Supports external USB mouse
• Dual Rail housing is slightly less than 1U with top and bottom clearance for smooth operation in 1U of rack space
• Dual Rail – LCD monitor slides independently of the keyboard/touchpad
• LCD module rotates up to 120 degrees for a more comfortable viewing angle
• Console lock – enables the console drawer to remain securely locked away in position when not in use
• LCD power button helps save energy and prolong displays´ life
  * Compatible KVM switches: KH1508A/KH1516A, KH0116, ACS1208A/ACS1216A, CS1708A/CS1716A, KH1508/KH1516
  Management
• Up to 64 user accounts – up to 32 concurrent remote logins
• End session feature – administrators can terminate any running session
• Adapter ID – stores port information allowing administrators to relocate servers to different ports, without having to reconfigure the adapters and switch
• Port Share Mode allows multiple users to gain access to a server simultaneously
• Remote power control for attached Power Over the NET™ devices
• Integration with ALTUSEN CC2000 Management software
• Event logging and Windows-based Log Server support
• Local Log Event
• Firmware upgradeable
• IPv6 capable
  Easy-to-Use Interface
• Easy computer selection via pushbuttons, Hotkey Mode, OSD (OnScreen Display), and Browser-based GUI
• Local Console, Browser, and AP GUIs offer a unified multi language interface to minimize user training time and increase productivity
• Multiplatform client support (Windows, Mac OS X, Linux, Sun)
• Multi-browser support: Internet Explorer, Chrome, Firefox, Safari, Opera, Mozilla, Netscape
• Browser-based UI in pure Web technology allows administrators to perform administrative tasks without the need for Java to be pre-installed
• Panel Array Mode™
• Keyboard broadcast* – keyboard input can be duplicated on all the attached servers
  * Local Console only
  Advanced Security
• Remote authentication support: RADIUS, LDAP, LDAPS, and MS Active Directory
• 128-bit SSL encryption to protect password when users log in
• Flexible encryption design allows users to choose any combination of 56-bit DES, 168-bit 3DES 256-bit AES, 128-bit RC4, or Random for independent KB/Mouse, and video data encryption
• IP/MAC Filter support for enhanced security protection
• Configurable user and group permissions for server access and control
  Virtual Remote Desktop
• Video quality and video tolerance can be adjusted to optimize data transfer speed; monochrome color depth setting, threshold and noise settings for compression of the data bandwidth in low bandwidth situations
• Full-screen or sizable and scalable Virtual Remote Desktop
• Message board feature allows logged in users to communicate with each other
• Mouse DynaSync™ – automatically synchronizes the local and remote mouse movements
• On-screen keyboard with multi language support
• BIOS-level access
• Keyboard Language support: English(US); English(UK); German;German(Swiss); French; Spanish; Traditional Chinese; Japanese; Korean;Swedish; Italian; Russian; Hungarian; Greek

Diagram :

Specification :

• The specification and pictures are subject to change without notice.
• All trademarks and logos are the properties of their respective holders.

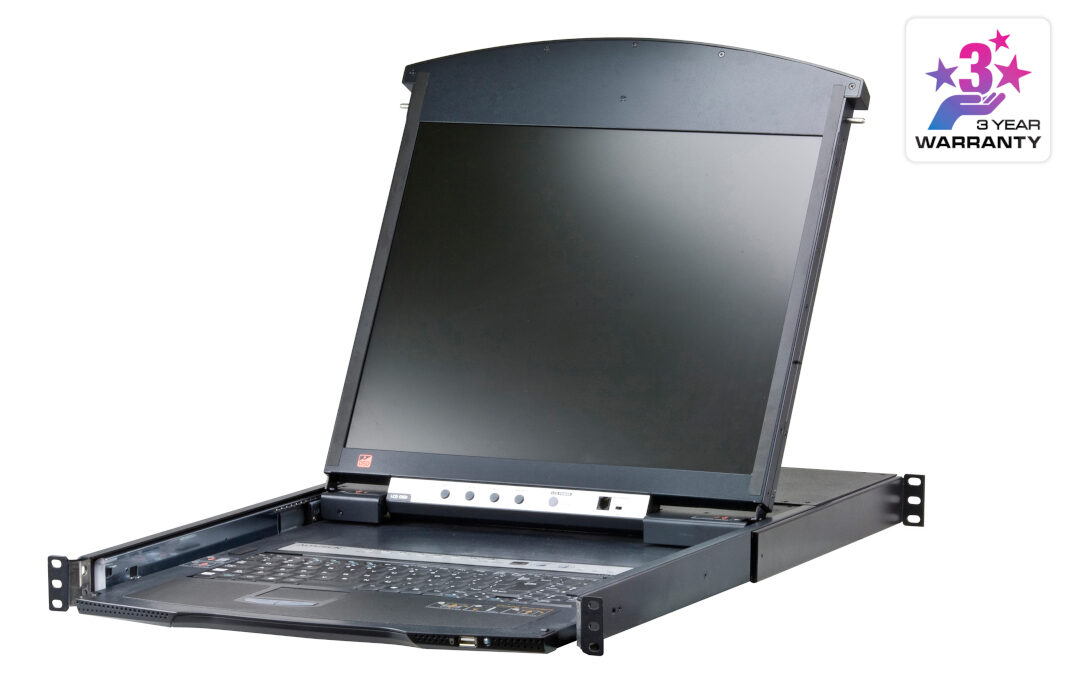

The KL1508Ai Dual Rail LCD KVM Switch is a control unit that allows secure access up to 8 computers from a single KVM (keyboard, video, and mouse) console. It consists of an integrated LCD monitor, keyboard, and touchpad in a 1U rack-mountable retractable sliding housing. The LCD and keyboard/touchpad modules slide independently of each other. To maximize space in your data center, the keyboard/touchpad module slides back to “ hide away ” when not in use, while the thin profile LCD monitor rotates back – flush against the rack – allowing convenient monitoring of computer activity.

The KL1508Ai features IP-based connectivity that allows local and remote operators to monitor and access the computers on your installation. Because it uses TCP/IP for its communications protocol, the KL1508Ai can be accessed from any computer on the LAN, WAN, or Internet – whether that computer is located down the hall, down the street, or halfway around the world. Compact, high-density, RJ-45 connectors and Cat 5e/6 cable make for a compact, efficient, wiring configuration, while the use of KVM Adapter Cables to link to the computers, permits any combination of PCs, Macs, Sun computers, and serial devices to coexist on the installation.

For added convenience, ports for an external keyboard, monitor, and mouse are provided on the rear panel – permitting you to manage the switch from a local console. There is also an external USB mouse port on the keyboard module, allowing you to use an external mouse, rather than the touchpad. Enhanced features include a Panel Array Mode™ that displays the video output of up to 8 computers at the same time, and a Message Board that allows logged in users to conveniently and instantly communicate with one other – no matter where in the world they actually are. The KL1508Ai is an ideal solution for your server room management.

Feature :

• Hardware
• Integrated KVM console with 19″ LCD monitor in a Dual Rail housing
• A single console controls up to 8 computers
• Daisy chain up to 15 additional KVM switches to control up to 128 computers*
• One bus for remote KVM over IP access
• Space-saving RJ-45 connectors and Cat 5e/6 cabling
• KVM adapter cables designed with automatic conversion to allow flexible interface combinations (PS/2, USB, Sun and serial) to control all computer types
• Extra console por – manage computers in the LCD KVM switch from an external console (monitor, USB or PS/2 keyboard, and USB or PS/2 mouse)
• Multiplatform support: PC, Mac, Sun and Serial
• Supports external USB mouse
• Dual Rail housing is slightly less than 1U with top and bottom clearance for smooth operation in 1U of rack space
• Dual Rail – LCD monitor slides independently of the keyboard/touchpad
• LCD module rotates up to 120 degrees for a more comfortable viewing angle
• Console lock – enables the console drawer to remain securely locked away in position when not in use
• LCD power button helps save energy and prolong displays´ life
  * Compatible KVM switches: KH1508A/KH1516A, KH0116, ACS1208A/ACS1216A, CS1708A/CS1716A, KH1508/KH1516
  Management
• Up to 64 user accounts – up to 32 concurrent remote logins
• End session feature – administrators can terminate any running session
• Adapter ID – stores port information allowing administrators to relocate servers to different ports, without having to reconfigure the adapters and switch
• Port Share Mode allows multiple users to gain access to a server simultaneously
• Remote power control for attached Power Over the NET™ devices
• Integration with ALTUSEN CC2000 Management software
• Event logging and Windows-based Log Server support
• Local Log Event
• Firmware upgradeable
• IPv6 capable
  Easy-to-Use Interface
• Easy computer selection via pushbuttons, Hotkey Mode, OSD (OnScreen Display), and Browser-based GUI
• Local Console, Browser, and AP GUIs offer a unified multi language interface to minimize user training time and increase productivity
• Multiplatform client support (Windows, Mac OS X, Linux, Sun)
• Multi-browser support: Internet Explorer, Chrome, Firefox, Safari, Opera, Mozilla, Netscape
• Browser-based UI in pure Web technology allows administrators to perform administrative tasks without the need for Java to be pre-installed
• Panel Array Mode™
• Keyboard broadcast* – keyboard input can be duplicated on all the attached servers
  * Local Console only
  Advanced Security
• Remote authentication support: RADIUS, LDAP, LDAPS, and MS Active Directory
• 128-bit SSL encryption to protect password when users log in
• Flexible encryption design allows users to choose any combination of 56-bit DES, 168-bit 3DES 256-bit AES, 128-bit RC4, or Random for independent KB/Mouse, and video data encryption
• IP/MAC Filter support for enhanced security protection
• Configurable user and group permissions for server access and control
  Virtual Remote Desktop
• Video quality and video tolerance can be adjusted to optimize data transfer speed; monochrome color depth setting, threshold and noise settings for compression of the data bandwidth in low bandwidth situations
• Full-screen or sizable and scalable Virtual Remote Desktop
• Message board feature allows logged in users to communicate with each other
• Mouse DynaSync™ – automatically synchronizes the local and remote mouse movements
• On-screen keyboard with multi language support
• BIOS-level access
• Keyboard Language support: English(US); English(UK); German;German(Swiss); French; Spanish; Traditional Chinese; Japanese; Korean;Swedish; Italian; Russian; Hungarian; Greek

Diagram :

Specification :

• The specification and pictures are subject to change without notice.
• All trademarks and logos are the properties of their respective holders.

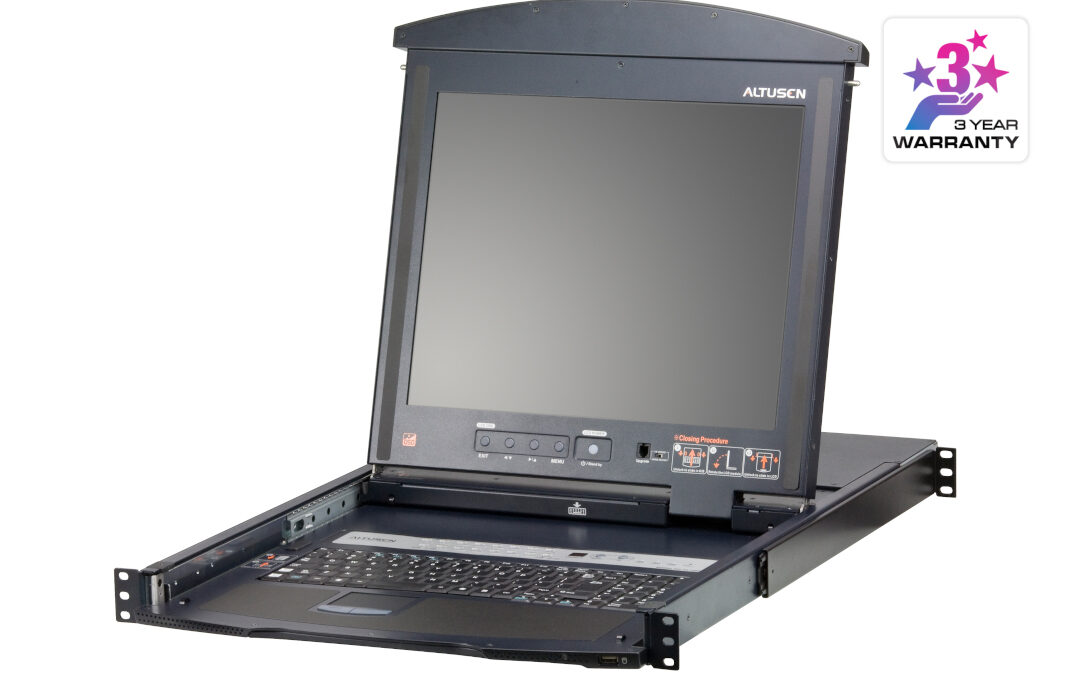

ALTUSEN KL1516AM LCD KVM Switch features independently retractable, dual slide 19″ LCD monitor and keyboard with built-in touchpad. The KL1516A KVM switches are control units that allow IT administrators to access and control multiple computers from the LCD console and an extra PS/2 or USB KVM console.

For increased reliability and efficiency, RJ-45 connectors and Cat 5e/6 cable are used to link to the computers. Utilizing KVM Adapter Cables for the final linkup, the KL1516A permits any combination of PCs, Macs, Sun computers, and serial devices to coexist on the installation. These switches have been designed with unique and powerful features that enable administrators to manage their entire server room and data center devices easily and conveniently.

For example, the advanced Adapter ID feature stores the Adapter Cable’s configuration information – such as its ID, port name, OS, keyboard language, etc. This feature allows administrators to relocate servers to different ports without having to reconfigure the adapters . Other advances found with these switches includes enhanced video quality – extending the distance to the servers to up to 165 feet (50 m) at a resolution of 1280 x 1024.A KL1516A installation provides one of the best and most economical solutions ATEN offers to the SMB market. There is no better way to save time, space, and money than with a KL1516A KVM switch.

Feature :

• Integrated KVM console with 19″ LCD monitor in a Dual Rail housing
• A single console controls up to 16 computers
• Space-Saving RJ-45 connectors and Cat 5e/6 cabling
• KVM adapter cables* designed with automatic conversion to allow flexible interface combinations (PS/2, USB, Sun and serial) to control all computer types
• OSD tree structure makes finding and managing computers easy
• Conveniently located station and port selectors with LED displays to quickly switch to target computers
• Dual Rail housing is slightly less than 1U with top and bottom clearance for smooth operationmm in U of rack space
• Extra console port – manage computers in the LCD KVM switch from an external console (monitor, USB or PS/2 keyboard, and USB or PS/2 mouse)
• Supports external USB mouse
• Dual Rail – LCD monitor slides independently of the keyboard/touchpad
• LCD module rotates up to 120 degrees for a more comfortable viewing angle
• Console lock – enables the console drawer to remain securely locked away in position when not in use
• Dedicated Hotkey Mode and OSD Invocation Keys reduce the number of keystrokes and provide quick access to these functions
• Daisy chain up to 31 additional KVM switches to control up to 512 computers
• Auto Scan mode enables continuous monitoring of user-selected computers
• Multiplatform support: PC, Mac, Sun and Serial
• Superior Video Quality- Supports the video resolutions up to 1280×1024@75 Hz for up to 50 meters
• Configure port access rights for users on a port – by – port basis
• Three port selection methods: Manual (via front panel pushbuttons), Hotkey, and multi-language OSD (On Screen Display)
• Multiple User Accounts -Supports up to 10 user and 1 administrator accounts
• Two-Level Password Security- Supports one administrator and ten user profiles. Strong password protection prevents unauthorized accessing to the installation
• LCD power button helps save energy and prolong displays’ life
• Broadcast Mode sends commands from the console to all computers – allowing you to perform operations (such as software installation, upgrades, shutdowns, etc.), on them simultaneously
• Adapter ID
• Firmware Upgradeable
• Keyboard Language support: English(US); English(UK); German;German(Swiss); French; Spanish; Traditional Chinese; Japanese; Korean;Swedish; Italian; Russian; Hungarian; Greek

Diagram :

Specification :

• The specification and pictures are subject to change without notice.
• All trademarks and logos are the properties of their respective holders.

ALTUSEN KL1508A LCD KVM Switch features independently retractable, dual slide 19″ LCD monitor and keyboard with built-in touchpad. The KL1508A KVM switches are control units that allow IT administrators to access and control multiple computers from the LCD console and an extra PS/2 or USB KVM console.

For increased reliability and efficiency, RJ-45 connectors and Cat 5e/6 cable are used to link to the computers. Utilizing KVM Adapter Cables for the final linkup, the KL1508A permits any combination of PCs, Macs, Sun computers, and serial devices to coexist on the installation.These switches have been designed with unique and powerful features that enable administrators to manage their entire server room and data center devices easily and conveniently.

For example, the advanced Adapter ID feature stores the Adapter Cable’s configuration information – such as its ID, port name, OS, keyboard language, etc. This feature allows administrators to relocate servers to different ports without having to reconfigure the adapters . Other advances found with these switches includes enhanced video quality – extending the distance to the servers to up to 165 feet (50 m) at a resolution of 1280 x 1024.A KL1508A installation provides one of the best and most economical solutions ATEN offers to the SMB market. There is no better way to save time, space, and money than with a KL1508A KVM switch.

Feature :

• Integrated KVM console with 19″ LCD monitor in a Dual Rail housing
• A single console controls up to 8 computers
• Space-Saving RJ-45 connectors and Cat 5e/6 cabling
• KVM adapter cables* designed with automatic conversion to allow flexible interface combinations (PS/2, USB, Sun and serial) to control all computer types
• OSD tree structure makes finding and managing computers easy
• Conveniently located station and port selectors with LED displays to quickly switch to target computers
• Dual Rail housing is slightly less than 1U with top and bottom clearance for smooth operationmm in 1U of rack space
• Extra console port – manage computers in the LCD KVM switch from an external console
• (monitor, USB or PS/2 keyboard, and USB or PS/2 mouse)
• Supports external USB mouse
• Dual Rail – LCD monitor slides independently of the keyboard/touchpad
• LCD module rotates up to 120 degrees for a more comfortable viewing angle
• Console lock – enables the console drawer to remain securely locked away in position when not in use
• Dedicated Hotkey Mode and OSD Invocation Keys reduce the number of keystrokes and provide quick access to these functions
• Daisy chain up to 31 additional KVM switches to control up to 256 computers
• Auto Scan mode enables continuous monitoring of user-selected computers
• Multiplatform support: PC, Mac, Sun and Serial
• Superior Video Quality- Supports the video resolutions up to 1280×1024@75 Hz for up to 50 meters
• Configure port access rights for users on a port – by – port basis
• Three port selection methods: Manual (via front panel pushbuttons), Hotkey, and multi-language OSD (On Screen Display)
• Multiple User Accounts -Supports up to 10 user and 1 administrator accounts
• Two-Level Password Security- Supports one administrator and ten user profiles. Strong password protection prevents unauthorized accessing to the installation
• LCD power button helps save energy and prolong displays’ life
• Broadcast Mode sends commands from the console to all computers – allowing you to perform operations (such as software installation, upgrades, shutdowns, etc.), on them simultaneously
• Adapter ID
• Firmware Upgradeable
• Keyboard Language support: English(US); English(UK); German;German(Swiss); French; Spanish; Traditional Chinese; Japanese; Korean;Swedish; Italian; Russian; Hungarian; Greek

Diagram :

Specification :

• The specification and pictures are subject to change without notice.
• All trademarks and logos are the properties of their respective holders.

The KL9116 is an IP-based KVM control unit that allows both local and remote operators to monitor and access multiple computers from multiple consoles. A single KL9116 can control up to 16 computers and can be accessed from any computer on the Net. The KL9116 features independently retractable 17″ LCD monitor and keyboard with built-in touchpad. To maximize space in your data center the keyboard “hides away” when not in use,while the thin profile LCD monitor provides continuous monitoring of computers.

Feature ;

• Integrated KVM console with 17″ LCD monitor in a Dual Rail housing
• Space saving technology with dual bus function support – 1 remote console (one bus) and two local consoles (one bus) control up to 16 computers
• Dual-bus – one local and one remote user can simultaneously control separate ports
• Remotely access computers via the LAN, WAN, or Internet – control your installation when and where you want
• Dual Rail housing is slightly less than 1U with top and bottom clearance for smooth operation in 1U of rack space
• Extra console port – manage computers in the LCD KVM switch from an external console (monitor, PS/2 keyboard, and PS/2 mouse)
• Supports external PS/2 mouse
• Dual Rail – LCD monitor slides independently of the keyboard/touchpad
• LCD module rotates up to 120 degrees for a more comfortable viewing angle
• Console lock – enables the console drawer to remain securely locked away in position when not in use
• Supports dedicated OSD and OSD Toolbar invocation keys
• Internet browser access, Windows Client and Java Client provided, Java Client works with all operating systems
• Graphical OSD and graphical toolbars for convenient, user-friendly operation
• Up to 64 user accounts – up to 32 concurrent remote logins
• Panel Array Mode – view all 16 ports at the same time.
• Message board feature allows logged in users to communicate with each other and allows a remote user to take exclusive control of the KVM functions
• Windows-based Log Server
• Remote power control for attached Power Over the NET™ devices
• Three level login security: Administrator, User, and Select
• Advanced security features include password protection and advanced encryption technologies – 1024 bit RSA, 256 bit AES, 56 bit DES, and 128 bit SSL
• RADIUS server support
• Ports can be set to Exclusive, Occupy and Share
• Network Interfaces: TCP/IP, HTTP, HTTPS, UDP, RADIUS, DHCP, SSL, ARP, DNS, 10Base-T/100Base-TX, auto sense, Ping
• Flash firmware upgradable over network connection
• Keyboard Language support: English(US); English(UK); German;German(Swiss); French; Spanish; Traditional Chinese; Japanese; Korean;Swedish; Italian; Russian; Hungarian; Greek
• Super A-Grade TFT LCD Panel; Zero Dead Pixel Guarantee
• Multiplatform support:Windows 2000/XP/Vista, Linux, Unix and FreeBSD.
• For more information about KVMs which can connect to KL9116, see Compatible KVM Table

Diagram :

Specification :

• The specification and pictures are subject to change without notice.
• All trademarks and logos are the properties of their respective holders.
