ATEN PE6324L

by | Sep 1, 2020 | ATEN

30A/32A 24-Outlet Metered & Switched Low Profile eco PDU PE6324L

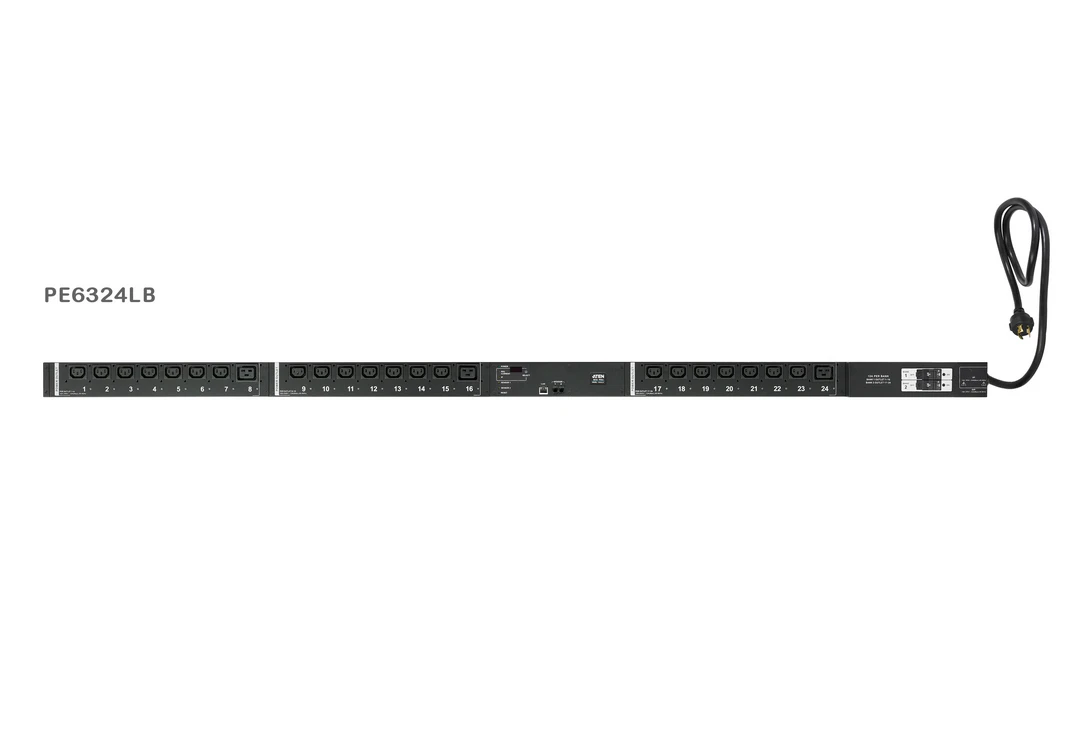

PE6324L-Metered-PDU-OL-large

  • Connections
  • Support 10/100Mbit Ethernet Interface
  • Support TCP/IP, UDP, HTTP, HTTPS, SSL, DHCP, SMTP, NTP, DNS, Auto Sense, Ping, Telnet, and SNMP V1,V2&V3
  • Support 2-level account/password security, IP/MAC filter, 128 bit SSL, RADIUS
  • Support : eco Sensors, Browser (IE, Firefox, Chrome, Safari)
  • Metering
  • Bank level power metering and monitoring
  • Environment Monitoring : support external temperature/temperature & humidity sensors for rack temperature and humidity monitoring
  • Current, voltage, power, power dissipation, temperature, and humidity metering and threshold level setting
  • Outlet Switch Control
  • Remote power outlet control ( On/Off, Power Cycle) by individual outlets and outlet groups
  • Support multiple power control methods – Wake on LAN, System After AC Back, Kill the Power
  • Power-On sequencing – users can set the power on sequence and delay time for each outlet to allow equipment to be turned on in the proper order
  • Proactive Overload Protection (POP) – automatically powers off outlets when current overloads to protect operating devices

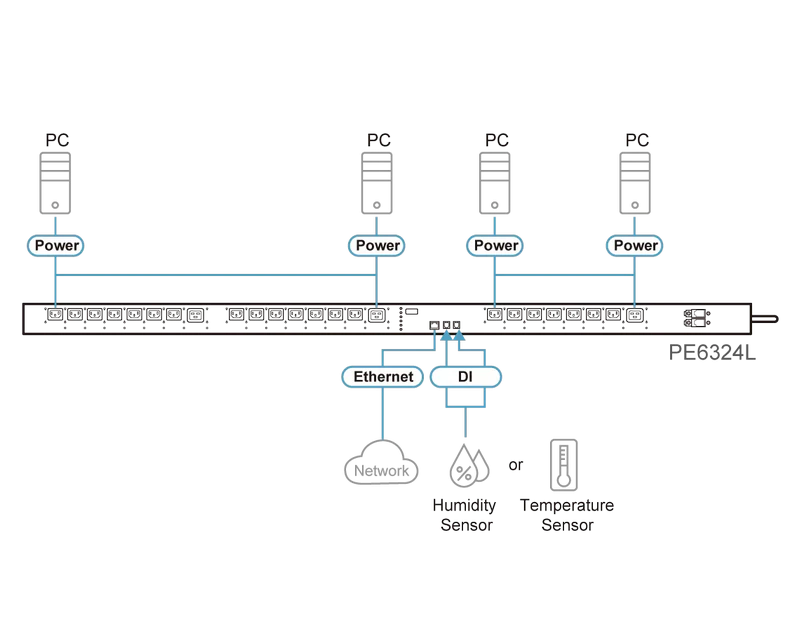

PE6324L-Metered-PDU-dg-org

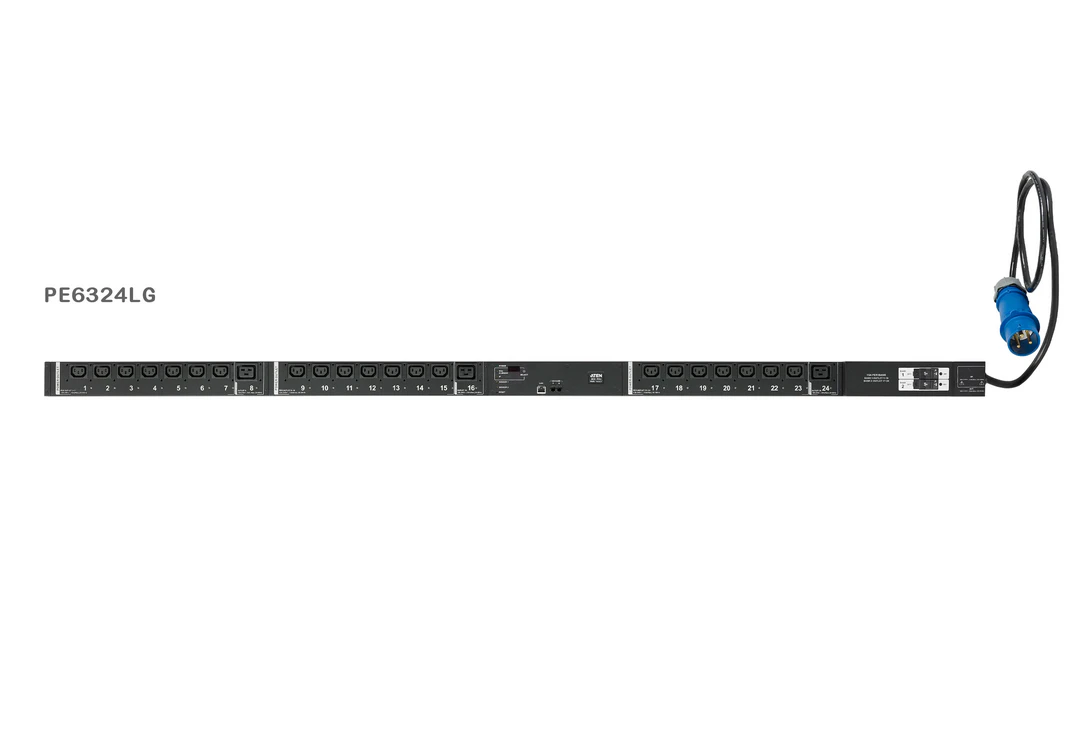

Function PE6324LB PE6324LG
Electrical
Nominal Input Voltage 100 – 240 VAC 100 – 240 VAC
Maximum Input Current 30A(Max) 32A(Max)
Input Frequency 50-60 Hz 50-60 Hz
Input Connection NEMA L6-30P IEC 60309 32A
Input Power 6240 VA(Max) 7360 VA(Max)
Outlet Type Total: 21 x IEC320 C13 + 3 x IEC320 C19
Bank1-1: Outlet 1 – 8; 7 x C13 + 1 x C19
Bank1-2: Outlet 9 – 16; 7 x C13 + 1 x C19
Bank2: Outlet 17 – 24; 7 x C13 + 1 x C19		 Total: 21 x IEC320 C13 + 3 x IEC320 C19
Bank1-1: Outlet 1 – 8; 7 x C13 + 1 x C19
Bank1-2: Outlet 9 – 16; 7 x C13 + 1 x C19
Bank2: Outlet 17 – 24; 7 x C13 + 1 x C19
Nominal Output Voltage 100 – 240 VAC 100 – 240 VAC
Maximum Output Current (Outlet) C13: 15A(Max)
C19: 15A(Max)		 C13: 10A(Max)
C19: 16A(Max)
Maximum Output Current (Bank) 15A(Max) 16A(Max)
Maximum Output Current (Total) 30A(Max) 32A(Max)
Breakers 2 x 16A Slim Breaker 2 x 16A Slim Breaker
Metering Bank Level Current, Voltage, VA , PF and kWh Monitoring Bank Level Current, Voltage, VA , PF and kWh Monitoring
Outlet Switching Yes Yes
Environment Sensor Ports 2 2
Metering Accuracy Voltage Range: 100VAC ~ 250VAC +/-1%
Power Range: 100W ~ Maximum Capacity +/- 2%
Current Range: 0.1A~1A +/- 0.1A, 1A~20A +/-1%		 Voltage Range: 100VAC ~ 250VAC +/-1%
Power Range: 100W ~ Maximum Capacity +/- 2%
Current Range: 0.1A~1A +/- 0.1A, 1A~20A +/-1%
Physical Properties
Dimensions (L x W x H) 177.50 x 6.60 x 4.40 cm
(69.88 x 2.6 x 1.73 in.)		 177.50 x 6.60 x 4.40 cm
(69.88 x 2.6 x 1.73 in.)
Weight 5.76 kg ( 12.69 lb ) 5.76 kg ( 12.69 lb )
Power Cord Length 1.6 m 1.6 m
Environmental
Temperature (Operating / Storage) 0–50°C / -20–60°C 0–40°C / -20–60°C
Humidity (Operating & Storage) 0–80% RH, Non-Condensing 0–80% RH, Non-Condensing
Compliance
EMC Verification FCC, Others by Request CE, C-Tick, Others by Request
Safety Verification By Request CE-LVD, Others by Request
Note For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
