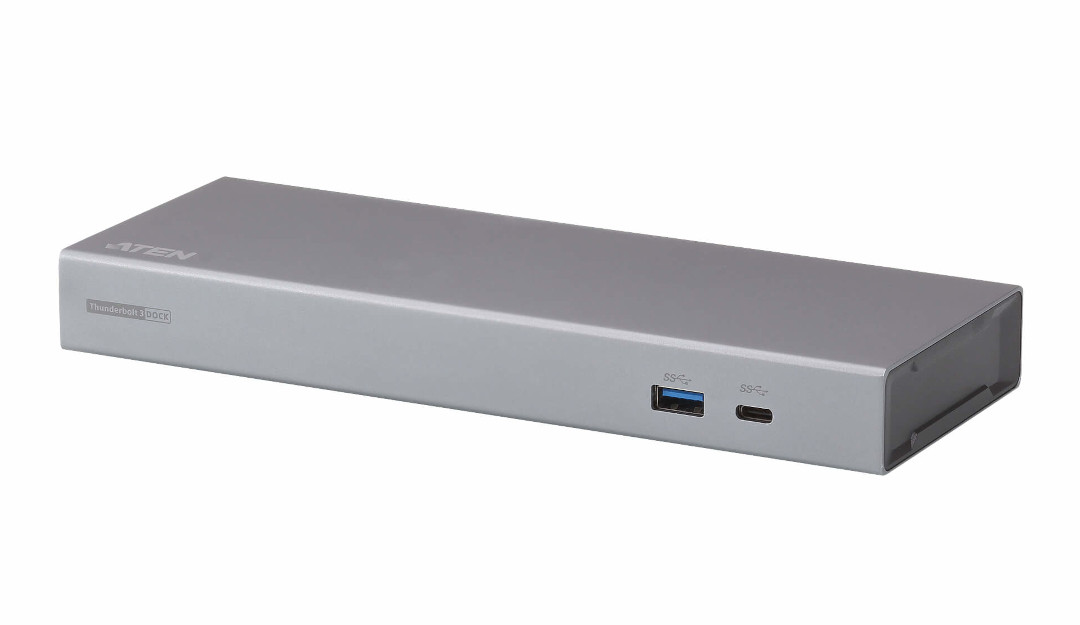

ATEN UH7230 Thunderbolt™ 3 Multiport Dock with Power Charging
- Supports both Thunderbolt 3 (40Gbps) and USB 3.1 Gen2 (10Gbps) protocol through a single Thunderbolt 3 cable
- Connect up to 8 devices to a laptop via a single Thunderbolt 3 cable / can daisy-chain 5 additional Thunderbolt devices
- 85W Universal Power Delivery for charging a Thunderbolt 3 laptop or MacBook pro ; supports 20V/4.25A, 15V/3A, 9V/3A and 5V/3A power specifiation for the output power
- Supports 5K resolution on a single Thunderbolt 3 display or dual 4K resolution on one DisplayPort display and one USB-C / Thunderbolt 3 display
Dual 4K or 5K Resolution for Graphics-intensive Multitasking
Combining a truly immersive next-generation visual experience with amazing throughput speeds, the UH7230 multiport dock allows you to connect two 4K displays (one DisplayPort and one Thunderbolt™ 3 USB-C port) or one latest generation 5K display, with nearly 16 million more pixels than an HDTV. Enjoy the astonishing resolution, contrast and color depth, whether you are editing videos or digital media, designing graphics or using any application that requires high-definition visuals.
Blazing Fast Speed to Boost Productivity
With Thunderbolt™ 3´s phenomenal bandwidth, up to 40Gbps, transferring a 4K movie needs less than 30 seconds. This means you can transfer files faster, reduce waiting and accomplish more in the same amount of time.
Up to 85W Power Delivery for Mac or Windows Laptop
UH7230 is an intuitive central hub for not only connectivity expansion but also for charging your laptop and USB accessories. It supports up to 85W of power delivery for Mac or Windows laptops.

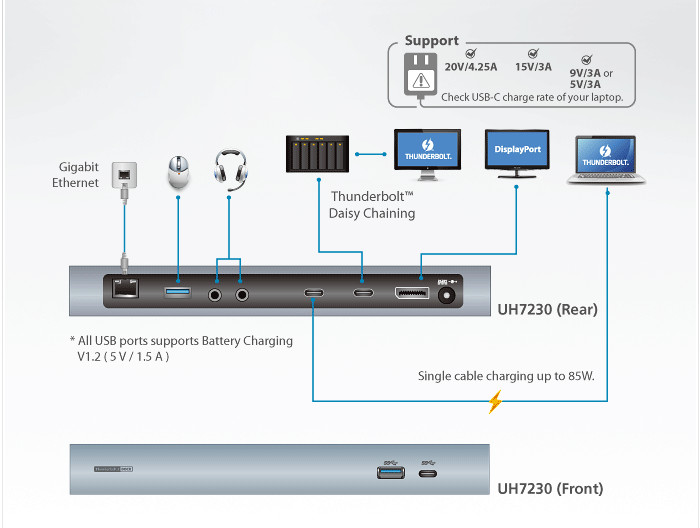

Single Cable for Astounding Expandability

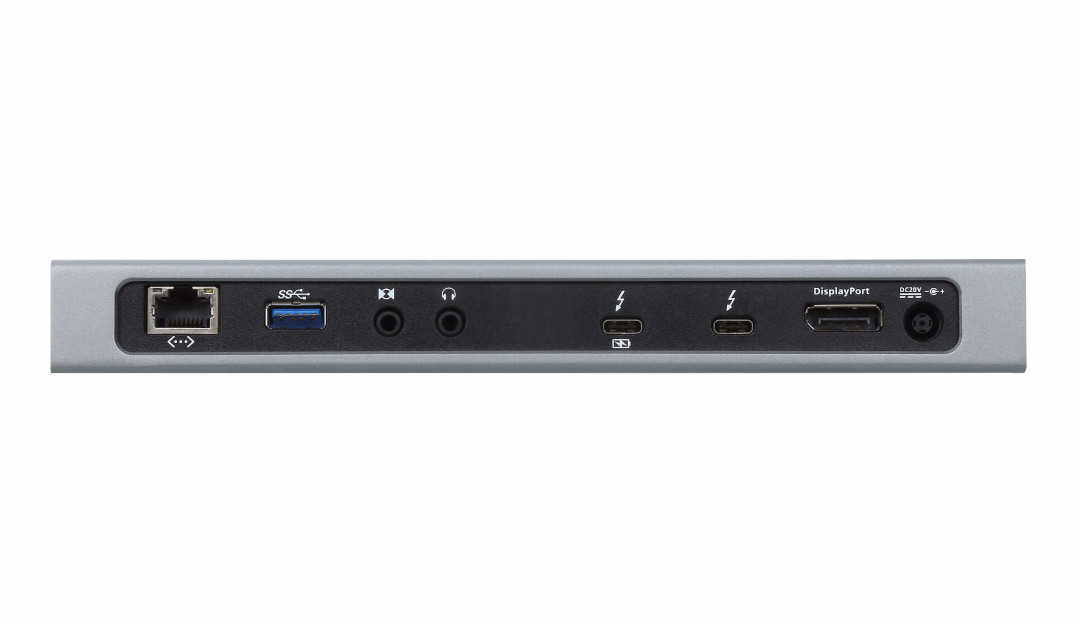

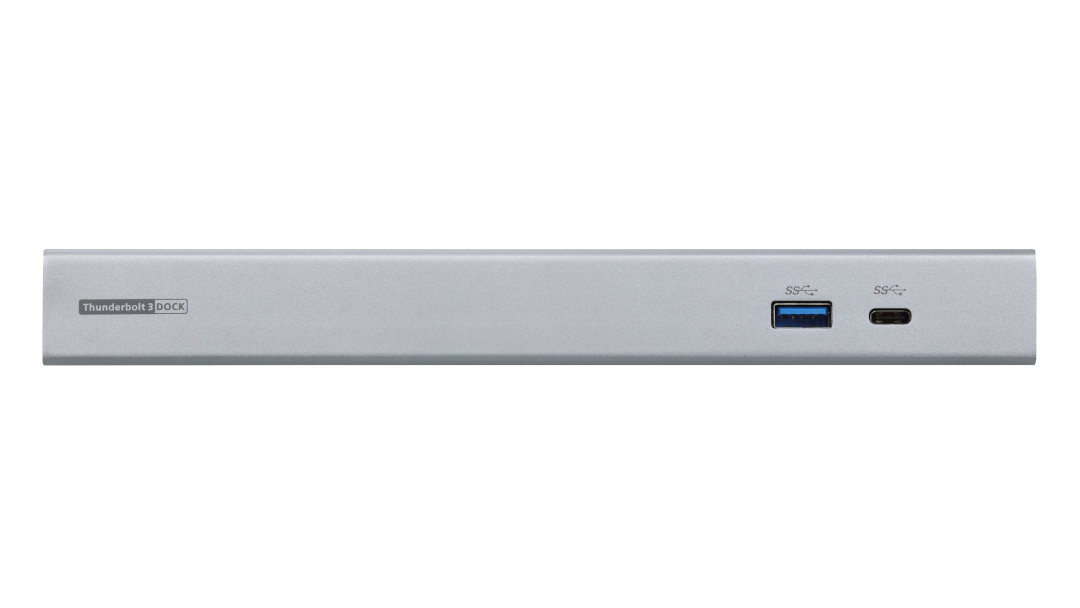

Using the single Thunderbolt™ 3 cable (included), the docking station expands the connectivity up to 8 ports, including audio, Gigabit Ethernet, DisplayPort, Thunderbolt™ 3 USB-C and USB 3.1 Gen 1 ports to accommodate your most demanding computing needs. A Thunderbolt™ 3 port is also provided to daisy chain up to 5 additional Thunderbolt™ 3 devices, such as data storage.
- Supports both Thunderbolt 3 (40Gbps) and USB 3.1 Gen2 (10Gbps) protocol through a single Thunderbolt 3 cable
- Connect up to 8 devices to a laptop via a single Thunderbolt 3 cable / can daisy-chain 5 additional Thunderbolt devices
- Supports 5K resolution on a single Thunderbolt 3 display or dual 4K resolution on one DisplayPort display and one USB-C / Thunderbolt 3 display
- 85W Universal Power Delivery for charging a Thunderbolt 3 laptop or MacBook pro ; supports 20V/4.25A, 15V/3A, 9V/3A and 5V/3A power specifiation for the output power
- Compatible with legacy Thunderbolt devices via adapter
- Gigabit Ethernet port
- Audio line-in and line-out
- OS Support: Windows 10 32/64 bit, and OS X Sierra 10.12 later
Your computer´s Thunderbolt 3 ports might not function properly until you update one or more of the following on your computer:
• BIOS
• Thunderbolt firmware
• Thunderbolt 3 controller drivers
• Thunderbolt 3 software
The required updates will vary depending on your computer.
For an up-to-date list of affected computers and instructions, visit http://thunderbolttechnology.net/updates
If your manufacturer isn’t listed on the Thunderbolt website, contact your manufacturer.
| Computer Connections | 1 Thunderbolt Computer |
| Device Connections | 5 Max. (via Thunderbolt Daisy-chaining) |
| Connectors | |
| Computer | 1 x Thunderbolt 3 (USB-C) Female (Black) |
| Device | 1 x Thunderbolt 3 (USB-C) Female (Black) 2 x USB 3.1 Gen1 Type-A Female (Blue) 1 x USB 3.1 Gen1 Type-C Female (Black, data only) |
| LAN Ports | 1 x Gigabit Ethernet Female (Black) |
| Audio Inputs | 1 x 3.5mm Stereo Input Female (Black) |
| Audio Outputs | 1 x 3.5mm Stereo Output Female (Black) |
| Power Jack | 1 |
| Video Output | 1x DisplayPort Female 1x Thunderbolt 3 (USB-C) Female |
| Video Resolution |
Single-View: Dual-View: |
| Power Consumption |
DC20V:8.5A:170WBTU/h Note: |
| Package Contents | 1 x Thunderbolt 3 (USB-C) Cable 1 x Power Adapter w/ AC power cord |
| Environmental | |
| Operating Temperature | 0–40°C |
| Storage Temperature | -20–60°C |
| Humidity | 0–80% RH, Non-condensing |
| Physical Properties | |
| Housing | Aluminum |
| Weight | 0.37 kg ( 0.83 lb ) |
| Dimensions (L x W x H) | 22.20 x 8.20 x 2.60 cm (8.74 x 3.23 x 1.02 in.) |
| Note | For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. |
