MOXA VPort 461-T

1-channel H.264 Industrial Video Encoder with 2 10/100BaseT(X) port, 0 to 60°C operating temperature

The VPort 461 1-channel industrial video encoder with H.264 video compression algorithm provides the best video quality on the market, but with a smaller bandwidth requirement than other video compression standards. In addition, to meet various video stream requirements, the VPort 461 can provide up to 3 video streams simultaneously with H.264 and MJPEG compression format. Video streams can be used for different purposes, such as viewing, recording, and analyzing, and the industrial rugged design, which includes a -40 to 75°C operating temperature, IP30 form factor protection, and industrial certifications, make the VPort 461 suitable
for harsh environments. The VPort 461 is equipped with Moxa’s innovative DynaStream™ function for decreasing the bandwidth consumption of your video transmissions. DynaStream™ can reduce or increase the video frame
rate automatically to make the video stream controllable by the system and system adminstrator.

Rugged Design for Mission-critical Industrial Environments

• -40 to 75°C wide operating temperature
• 2 Ethernet ports for cascade and port redundancy
• 1  RS-232/422/485 COM port for controlling external serial devices over Ethernet
• Redundant 12/24 VDC and 24 VAC power inputs for greater reliability
• Metal housing with IP30 protection against dust
• DIN-Rail mounting installation for industrial environments
• UL60950-1 certified for hazardous locations
• Meets NEMA TS2, Section 2 requirements

Advanced Network Protocols Support Efficient Network Transmission and Integration

• Modbus/TCP for easy communication with SCADA software
• Standard RTSP (real-time streaming protocol) video streaming for easy integration
• Multicast (IGMP) protocols for efficient network transmission
• SNMPv1/v2c/v3 MIB-II for easy network management
• QoS (ToS) for configuring the transmission priority of video streams
• UPnP, DDNS, and IP filtering supported

Two Ethernet Ports for Cascading and Port Redundancy

The VPort 461 has two built-in 10/100 Mbps Ethernet ports for cascading multiple VPort 461 units. With the cascade feature, you’ll need fewer switch ports, and also reduce your cable layout effort. Port redundancy can be used to build a backup path for video transmission in case the primary path is broken.

SD Card for Storing Video Locally when the Network is Down

The VPort 461 is equipped with an SD card socket (V2.0) for local storage purposes. Enable local storage to record events that occur when the network is down and the video stream cannot be transmitted.

Transparent PTZ Control for Easy Control of PTZ Cameras

The VPort 461 uses Moxa’s Real COM technology to implement transparent communication for RS-232/422/485 PTZ control. The benefit of the Transparent PTZ Control function is that it eliminates the need to build the PTZ control driver into the VPort product, allowing the use of a legacy PTZ control panel or keyboard to control a PTZ camera directly.

Feature :

Features and Benefits

• 3 simultaneous video streams for H.264 and MJPEG
• Video latency under 200 ms
• 2 Ethernet ports for cascade and Ethernet port redundancy
• Moxa DynaStream™ function supported for network efficiency
• ONVIF supported for standardization and interoperability
• Local storage capability with SD card slot
• Industrial design with -40 to 75°C operating temperature
• Free VPort SDK PLUS supported

Specification :

• Video
Video Compression	H.264 (MPEG4 part 10), MJPEG
Video Inputs	1 (BNC connector)
Video Outputs	over Ethernet
Video Streams	Max. of 3 video streams (2 encoders: 1 for H.264, 1 for H.264 or MJPEG)
NTSC/PAL	Auto-sensing or manual

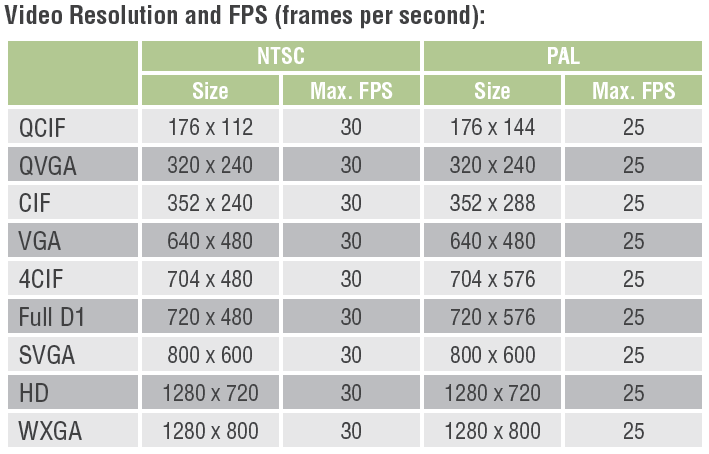

Video Resolution and FPS (frames per second)
Video Viewing	• DynaStream™ supported for changing the video frame rate automatically • Adjustable image size and quality • Timestamp and text overlay • Maximum of 10 simultaneous unicast connections
• Audio
Audio Inputs	1 Line-in or MIC-in with 3.5 mm phone jack
Audio Outputs	1 Line-out with 3.5 mm phone jack
Audio Format	Mono, PCM
• Network
Protocols	TCP, UDP, HTTP, SMTP, FTP, NTP, DNS, DHCP, UPnP, RTP, RTSP, ICMP, IGMPv3, QoS, SNMPv1/v2c/v3, DDNS, Modbus/TCP
Ethernet	2 10/100BaseT(X) auto negotiating RJ45 ports
• Serial Port
PTZ Ports	1, RS-232/422/485 port (terminal block connector), max. speed of 115.2 Kbps
COM Ports	1, RS-232/422/485 port (DB9 female connector), max. speed of 115.2 Kbps
Console Port	1, RS-232 RJ45 port
• GPIO
Digital Inputs	2, max. 8 mA Low: +13 to +30 V; High: -30 to +3 V
Relay Outputs	2, max. 24 VDC @ 1 A
• LED Indicators
PWR1	Power 1
PWR2	Power 2
FAULT	Can be configured to correspond to system alarm, power failure, or disconnected network
VIDEO	Video input signal
PTZ	PTZ control signal
SD	SD card operation
• Local Storage
SD Socket	Standard SD socket, V2.0 (SDHC)
• Power Requirements
Input Voltage	2 24 VDC/VAC power inputs for redundancy
Power Consumption	Approx. 5.5 W
• Physical Characteristics
Housing	Metal, IP30 protection
Dimensions	52.98 x 135 x 105 mm (2.09 x 5.31 x 4.13 in)
Weight	900 g
Installation	DIN-Rail mounting, wall mounting (with optional kit)
• Alarms
Video Motion Detection	Includes sensitivity tuning
Video Loss	Video loss alarm
Scheduling	Daily repeat timing schedule
Imaging	JPEG snapshots for pre/trigger/post alarm images
Email/FTP Messaging	Automatic transfer of stored images via email or FTP with event-triggered actions
Custom Alarms	HTTP event servers and CGI events for setting customized alarm actions
Pre-alarm Buffer	24 MB for JPEG snapshot images
• PAN/TILT/ZOOM
PTZ Camera Control	Via RS-232/422/485 PTZ port or COM port
PTZ Control Functions	PAN, TILT, ZOOM, FOCUS, moving speed, preset position (max. 25 positions), and 24 custom commands
PTZ Function Updates	Driver upload supported
Supported Device Protocols	Pelco D, Pelco P, Dynacolor DynaDome, Cohu, Custom Camera
Transparent PTZ Control	Control PTZ cameras with legacy PTZ control panel or keyboard connected to a PC or VPort decoder
• Security
Password	User level password protection
Filtering	By IP address
• Environmental Limits
Operating Temperature	Standard Models: 0 to 60°C (32 to 140°F) Wide Temp. Models: -40 to 75°C (-40 to 167°F)
Storage Temperature	-40 to 85°C (-40 to 185°F)
Ambient Relative Humidity	5 to 95% (non-condensing)
• Standards and Certifications
Safety	UL 60950-1
EMI	FCC Part 15 Subpart B Class A, EN 55022 Class A
EMS	EN 61000-4-2 (ESD), Level 3, EN 61000-4-3 (RS), Level 3, EN 61000-4-4 (EFT), Level 3, EN 61000-4-5 (Surge), Level 3, EN 61000-4-6 (CS), Level 3, EN 61000-4-8, EN 61000-4-11
Traffic Control	NEMA TS2
Shock	IEC 60068-2-27
Freefall	IEC 60068-2-32
Vibration	IEC 60068-2-6
Note	Please check Moxa’s website for the most up-to-date certification status.
• MTBF (mean time between failures)
Time	375,000 hours
Database	Telcordia (Bellcore), GB 25°C
• Warranty
Warranty Period	5 years
Details	See www.moxa.com/warranty
• Minimum Viewing System Requirements
CPU	Pentium 4, 2.4 GHz or above
Memory	512 MB memory or above
OS	Windows XP/2000 with SP4 or above, Windows Vista, Windows 7
Browser	Internet Explorer 9.x or above
Multimedia	DirectX 9.0c or above
• Software Development Kit
VPort SDK PLUS	Includes CGI commands, ActiveX Control, and API library for customized applications or system integration for third-party developers (the latest version of SDK is available for download from Moxa’s website).
Standard	ONVIF
