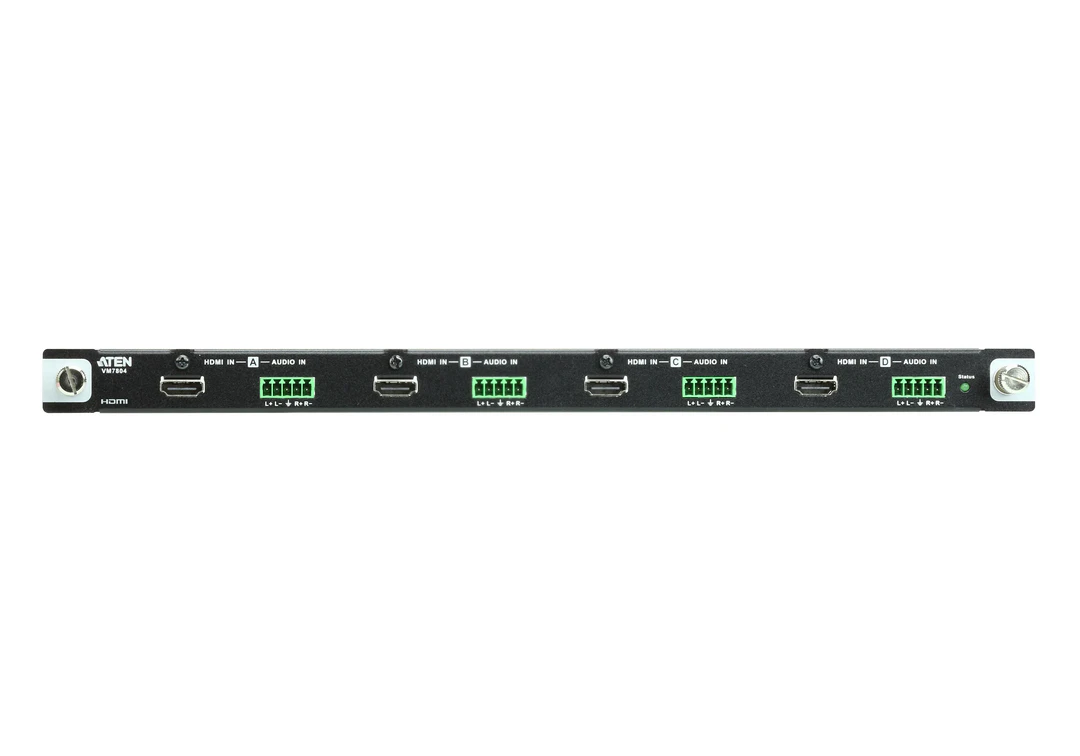

Aten VM7804 4-Port HDMI Input Board

by | Apr 10, 2017 | ATEN

VM7804-Modular-Matrix-Switches-OL-large

The VM7804 4-Port HDMI Input Board is offers an easy way to route any of 4 audio/video sources to any of 4 displays, in combination with an ATEN Modular Matrix Switch.
The VM7804 also supports HDMI audio can be extracted and stereo audio that can be embedded.
Features :
  • Superior video quality – HDTV resolutions of 480p, 720p, 1080i and 1080p (1920 x 1080)
  • HDMI (3D, Deep Color); HDCP 1.4 Compatible
  • Built-in scaler on each output port to support the scaling function for different video Resolutions
  • Consumer Electronics Control (CEC) support
  • EDID Expert – selects optimum EDID settings for smooth power-up and the highest quality display
  • Built-in EDID wizard – provides an easy way to customized EDID settings
  • Hot-swappable design for easy integration of I/O boards
  • Audio-enabled, HDMI audio can be extracted and stereo audio can be embedded

Diagram :

VM7804-Modular-Matrix-Switches-dg-org

Specification :

Video Input
Interfaces 4 x HDMI Type A Female (Black)
Impedance 100 Ώ
Video Output
Interfaces 4 x HDMI Type A Female (Black)
Impedance 100 Ώ
Video
Max. Data Rate 6.75 Gpbs (2.25 Gbps Per Lane)
Max. Pixel Clock 225 MHz
Compliance HDMI (3D, Deep Color)
HDCP 1.4 Compatible
Consumer Electronics Control (CEC)
Max. Resolution Up to 1920 x 1080
Max. Distance 15 m
Audio
Input 4 x Captive Screw Connector, 5 Pole
*Audio signal type: stereo, balanced/unbalanced.
Output 4 x Captive Screw Connector, 5 pole
* Audio signal type: stereo, balanced/unbalanced.
Power Consumption: 7W
Environmental
Operating Temperature 0 – 40°C
Storage Temperature -20 – 60°C
Humidity 0 – 80% RH, Non-Condensing
Physical Properties
Housing Metal
Weight 0.58 kg ( 1.28 lb )
Dimensions (L x W x H) 35.20 x 23.80 x 2.33 cm
(13.86 x 9.37 x 0.92 in.)
Carton Lot 2 pcs
