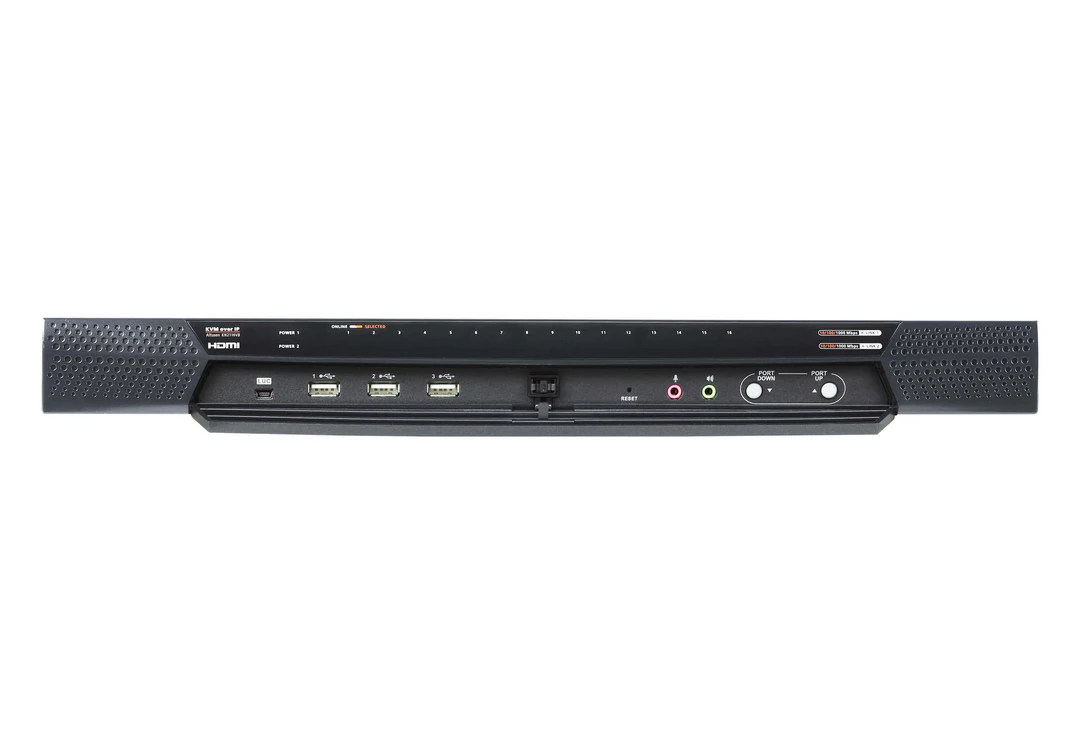

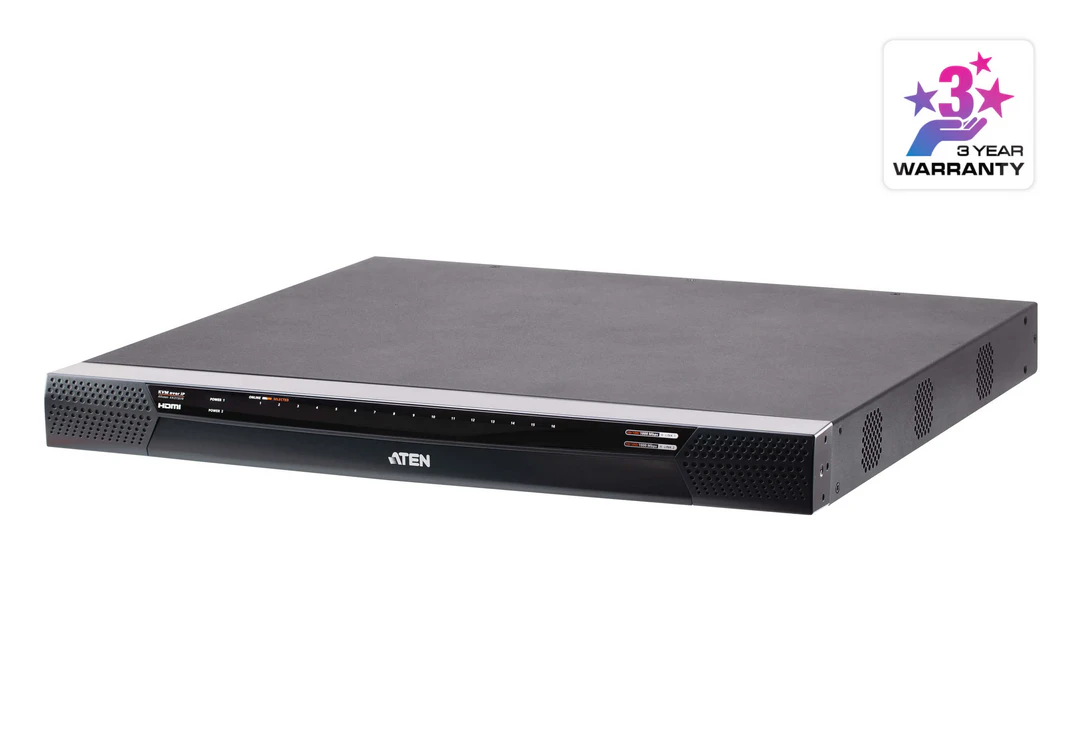

ATEN KN2116VB 1-Local/2-Remote Access 16-Port Multi-Interface Cat 5 KVM over IP Switch

 • Hardware

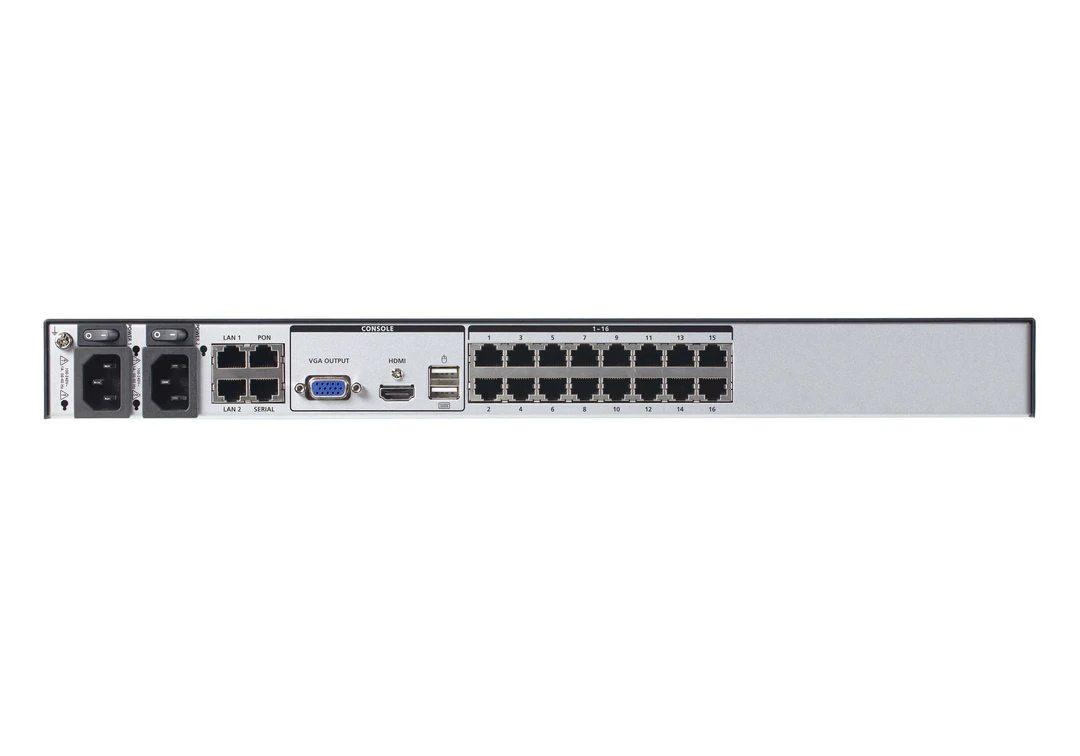

◦ High port density – RJ-45 connectors and Cat 5e / 6 cable for up to 16 ports in 1U housing
◦ Laptop USB Console (LUC) – a dedicated USB port directly connects to a laptop for easy console operation
◦ 2 separate buses for remote KVM over IP access (varies by different models)
◦ Two 10 / 100 / 1000 Mbps NICs for redundant LAN or two IP operation
◦ Blade server support
◦ Supports PS/2, USB, Sun Legacy and serial (RS-232) connectivity
◦ Multiplatform server environments: Windows, Mac, Sun, Linux and VT100 based serial devices
◦ Audio enabled
◦ Dual power supply
◦ Superior video quality – video resolution up to 1920 x 1200 @ 60 Hz, 24-bit color depth; transmission distance of up to 50m
◦ Cascadable – controls up to 512 computers

• Management
◦ Simultaneously share 1 local console and 2 independent connection to the attached servers
◦ End session feature – administrators can terminate running sessions
◦ Integrated with ATEN CC2000 Centralized Management Software and CCVSR Video Session Recording Software
◦ Supports 64 user accounts and up to 32 users can be logged in at the same time for management
◦ Green IT Fan – auto-fan-speed adjustment responding to temperature
◦ Event logging and Windows-based log server
◦ Event notification – supports notification of SMTP email, SNMP Trap, and SMS (with additional mobile devices)
◦ Event destination – event logs will be saved to Log server, Syslog server, and USB drive
◦ Firmware upgradeable
◦ Out-of-Band access – modem dial-in / dial-out / dial-back support
◦ Adapter ID – stores port information allowing administrators to relocate the servers to different ports, without having to re-configure the adapters and switches
◦ Port share mode – allows multiple users to gain access to a server simultaneously
◦ Supports ATEN KVM over IP console station (KA82xx series)
◦ Power association enables the switch’s KVM ports to be associated with ATEN PDUs power outlets for remote power management
◦ Supports IPv4, IPv6

• Easy-to-Use Interface
◦ Supports PadClient application on an iPad for mobile management
◦ Panel Array Mode™ – monitors all ports in a grid display (both local and remote screens)
◦ Local console, browser-based, and AP GUIs offer a unified multi-language interface to minimize the user training time and increase productivities
◦ Multiplatform client support (Windows, Mac OS X, Linux, and Sun)
◦ Multi-browser support – Internet Explorer, Chrome, Firefox, Safari, Opera, and Netscape
◦ Browser-based GUI in pure Web technology – allows administrators to perform administrative tasks without pre-installed software. (e.g. Java)
◦ Supports web-friendly KVM-over-IP access with HTML5 WebClient viewer – users can remotely access all the connected servers and PCs without Java or browser plug-in installation
◦ Users can launch multiple virtual remote desktop sessions to control multiple servers during the same login
◦ Full-screen or sizable and scalable virtual remote desktop
◦ Keyboard / mouse broadcast – keyboard and mouse signals can be duplicated across all servers simultaneously
◦ Video syncing with the local console – local console monitor’s EDID information stored on the KVM adapter for display resolution optimization

• Security
◦ High-grade security – supports FIPS 140-2 level 1 security standards that use an embedded FIPS 140-2 certified OpenSSL cryptographic module (Certificate #1747, #2398, #2473)
◦ Remote authentication support: RADIUS, LDAP, LDAPS, and MS Active Directory
◦ Supports TLS 1.2 with 128-bit SSL, 256-bit AES encryption algorithms, along with 2048-bit RSA certification, ensuring secure data transmission during browser login
◦ Support for IP / MAC filter
◦ Configurable user and group permissions for server access and control
◦ Automated CSR creation utility and third party CA certificate authentication

• Virtual Media
◦ Virtual media enhances data transmission performance, ideally for file transfers, OS patching, software installations and diagnostic testing
◦ Works with USB enabled servers in operating system and BIOS level
◦ Supports USB2.0 DVD / CD drives, USB mass storage devices, PC hard drives and ISO images

• Virtual Remote Desktop
◦ Message Board for communication among remote users
◦ Video quality such as monochrome color depth, threshold and noise settings, bandwidth increment / reduction can be adjusted for optimizing data transfer speed
◦ Mouse DynaSync™ – automatically synchronizes the local and remote mouse movements
◦ On-screen keyboard with multi-language support
◦ BIOS-level access for troubleshooting
