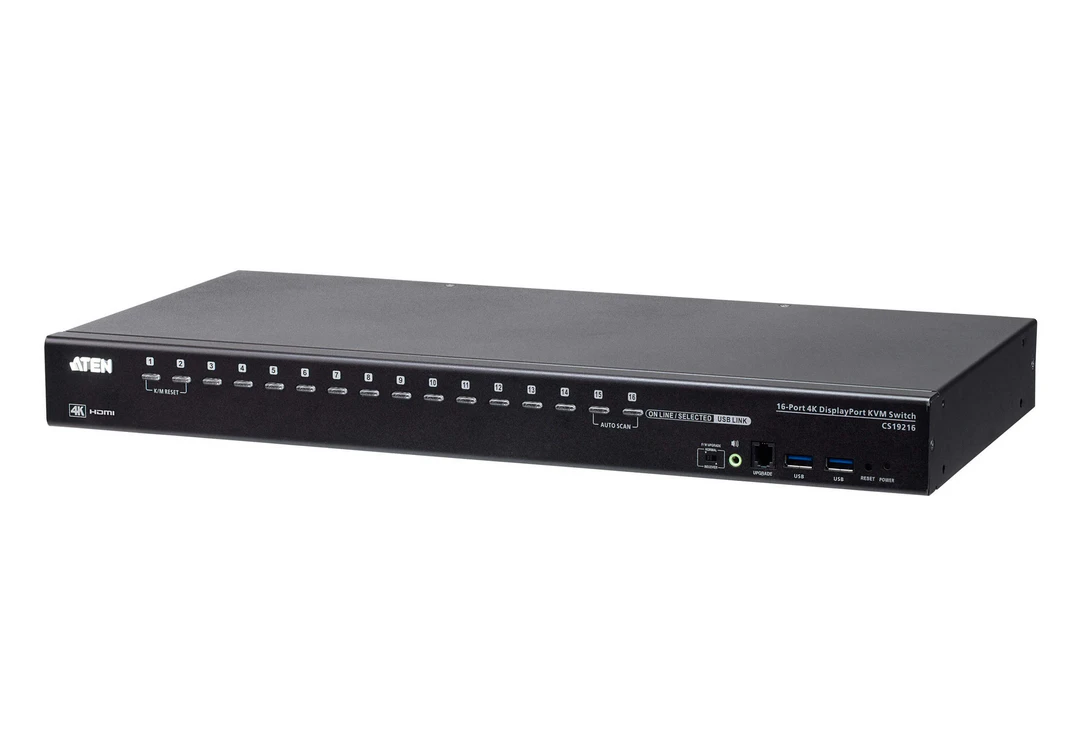

ATEN CS19216 16-Port USB 3.0 4K DisplayPort KVM Switch

• One USB console controls up to sixteen DisplayPort interface computers and two additional USB 3.0 peripheral devices
• Cascadable to two levels – controls up to 256 computers¹
• Multi-Display feature – stack up to eight CS19216 units and display video from up to 8 monitors (dual display / triple display / quad display / multi-display)
• Video DynaSync™ – an exclusive ATEN technology that eliminates boot-up display problems and optimizes the resolution when switching among different sources
• EDID Expert™ – selects optimum EDID mode for smooth power-up and highest quality display
• Supports a DisplayPort or HDMI video output – allows you to choose an appropriate video output and deploy console with flexibility
• Superior video quality – up to 4K DCI (4096 x 2160 @ 60Hz)
• Built-in 2-port USB 3.1 Gen 1 hub with SuperSpeed 5 Gbps data transfer rates
• Audio enabled – full bass response provides a rich experience for 2.1 channel stereo sound
• Supports HD audio²
• Computer selection via pushbuttons, hotkeys, OSD, and RS-232 commands
• Independent switching of KVM and USB peripheral focus³
• Two-level (administrator/user) password authorization for enhanced security protection
• Broadcast mode – operations can be simultaneously performed on all selected computers, such as software installation and upgrading, system-wide shutdown, etc.
• Auto Scan Mode for monitoring all computers
• Console mouse port emulation/bypass feature supports most mouse drivers and multifunction mice
• Multilingual keyboard mapping – supports English (US), English (UK), German (GER.), German (SWISS), French, Hungarian, Italian, Japanese, Korean, Russian, Spanish, Swedish, Traditional Chinese, and Simplified Chinese
• Mac/Sun keyboard support and emulation⁴
• Supports hot-plugging
• DisplayPort 1.2 compliant; HDCP 2.2 compliant
• Multiplatform support – Windows, Linux, Mac, and Sun
• Firmware upgradable
• Supports multimedia, wireless keyboards and mouse

Package Contents

• 1x CS19216 16-Port USB 3.0 4K DisplayPort KVM Switch with Rack Mounting Kit
• 2x DisplayPort 1.4 Cables
• 2x USB 3.0 Cables
• 2x Audio Cables
• 1x Firmware Upgrade Cable
• 1x Foot Pad Set (4 pcs)
• 1x Power Adapter
• 1x User Instructions
