ATEN CS19208

by | May 12, 2022 | ATEN

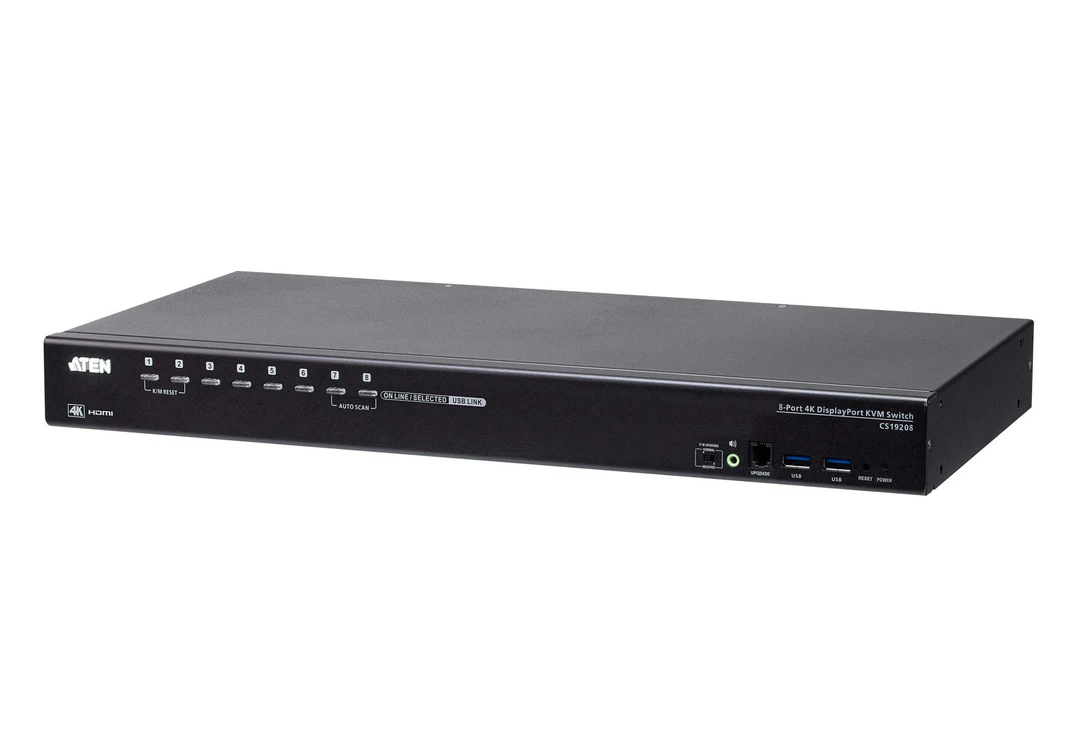

ATEN CS19208 8-Port USB 3.0 4K DisplayPort KVM Switch



  • One USB console controls up to eight DisplayPort interface computers and two additional USB 3.0 peripheral devices
  • Cascadable to two levels – controls up to 128 computers1
  • Multi-Display feature – stack up to eight CS19208 units and display video from up to 8 monitors (dual display / triple display / quad display / multi-display)
  • Video DynaSync™ – an exclusive ATEN technology that eliminates boot-up display problems and optimizes the resolution when switching among different sources
  • EDID Expert™ – selects optimum EDID mode for smooth power-up and highest quality display
  • Supports a DisplayPort or HDMI video output – allows you to choose an appropriate video output and deploy console with flexibility
  • Superior video quality – up to 4K DCI (4096 x 2160 @ 60Hz)
  • Built-in 2-port USB 3.1 Gen 1 hub with SuperSpeed 5 Gbps data transfer rates
  • Audio enabled – full bass response provides a rich experience for 2.1 channel stereo sound
  • Supports HD audio2
  • Computer selection via pushbuttons, hotkeys, OSD, and RS-232 commands
  • Independent switching of KVM and USB peripheral focus3
  • Two-level (administrator/user) password authorization for enhanced security protection
  • Broadcast mode – operations can be simultaneously performed on all selected computers, such as software installation and upgrading, system-wide shutdown, etc.
  • Auto Scan Mode for monitoring all computers
  • Console mouse port emulation/bypass feature supports most mouse drivers and multifunction mice
  • Multilingual keyboard mapping – supports English (US), English (UK), German (GER.), German (SWISS), French, Hungarian, Italian, Japanese, Korean, Russian, Spanish, Swedish, Traditional Chinese, and Simplified Chinese
  • Mac/Sun keyboard support and emulation4
  • Supports hot-plugging
  • DisplayPort 1.2 compliant; HDCP 2.2 compliant
  • Multiplatform support – Windows, Linux, Mac, and Sun
  • Firmware upgradable
  • Supports multimedia, wireless keyboards and mouse

Package Contents

  • 1x CS19208 8-Port USB 3.0 4K DisplayPort KVM Switch with Rack Mounting Kit
  • 2x DisplayPort 1.4 Cables
  • 2x USB 3.0 Cables
  • 2x Audio Cables
  • 1x Firmware Upgrade Cable
  • 1x Foot Pad Set (4 pcs)
  • 1x Power Adapter
  • 1x User Instructions
